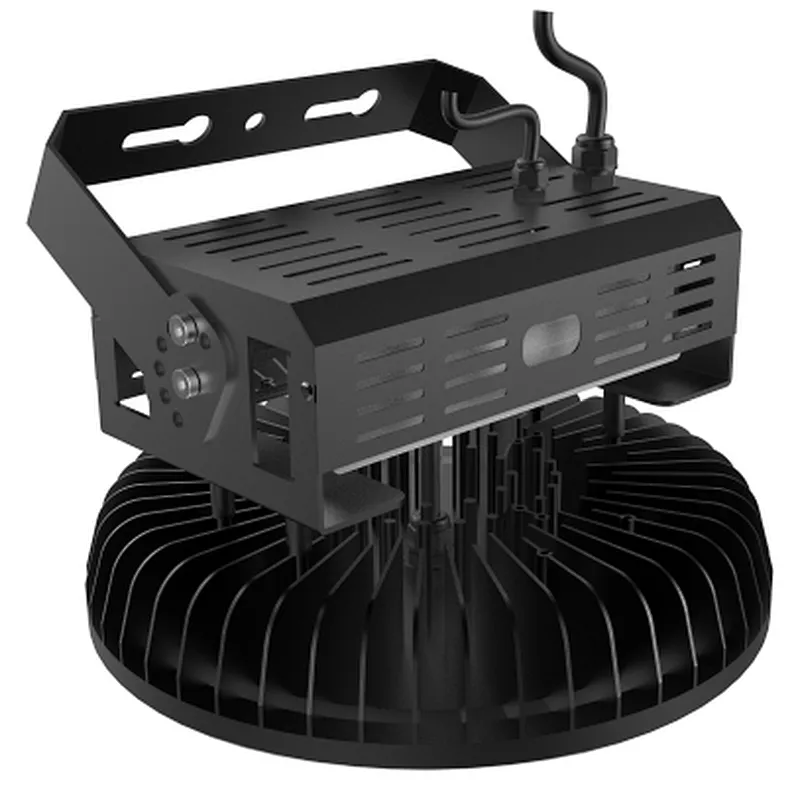

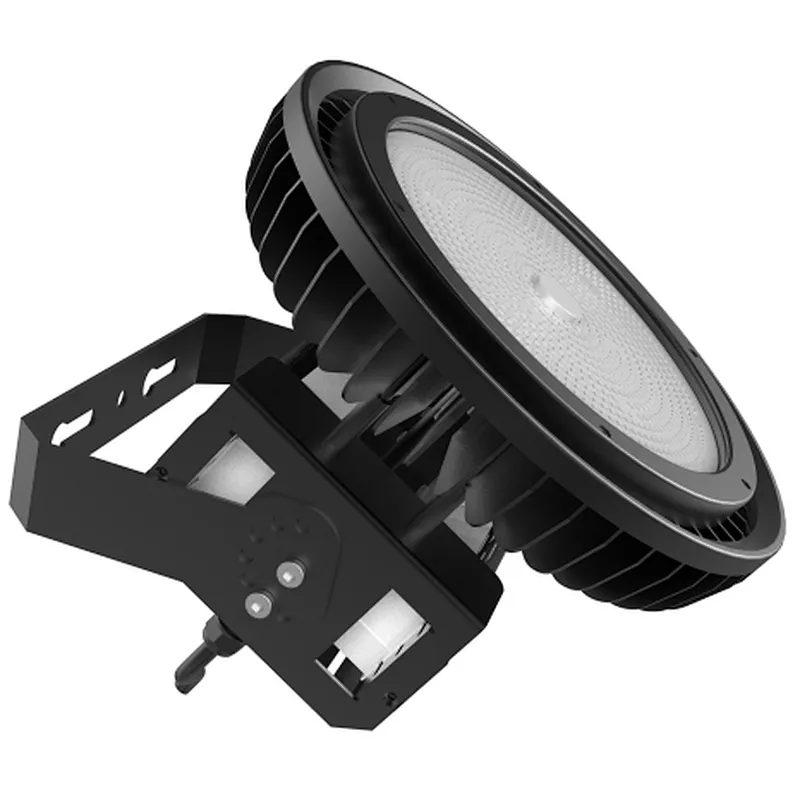

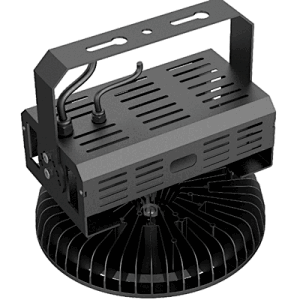

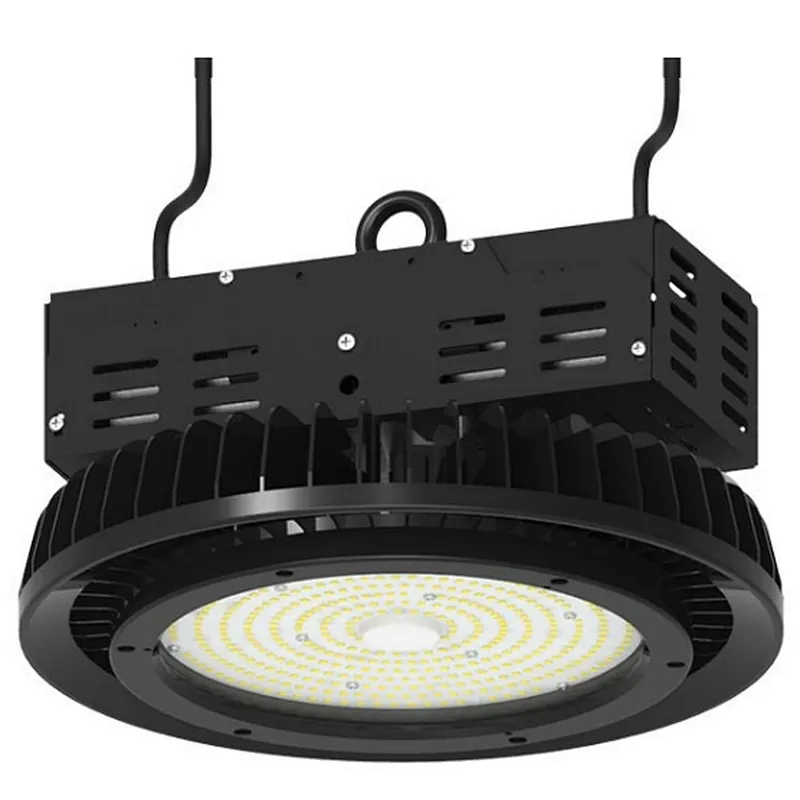

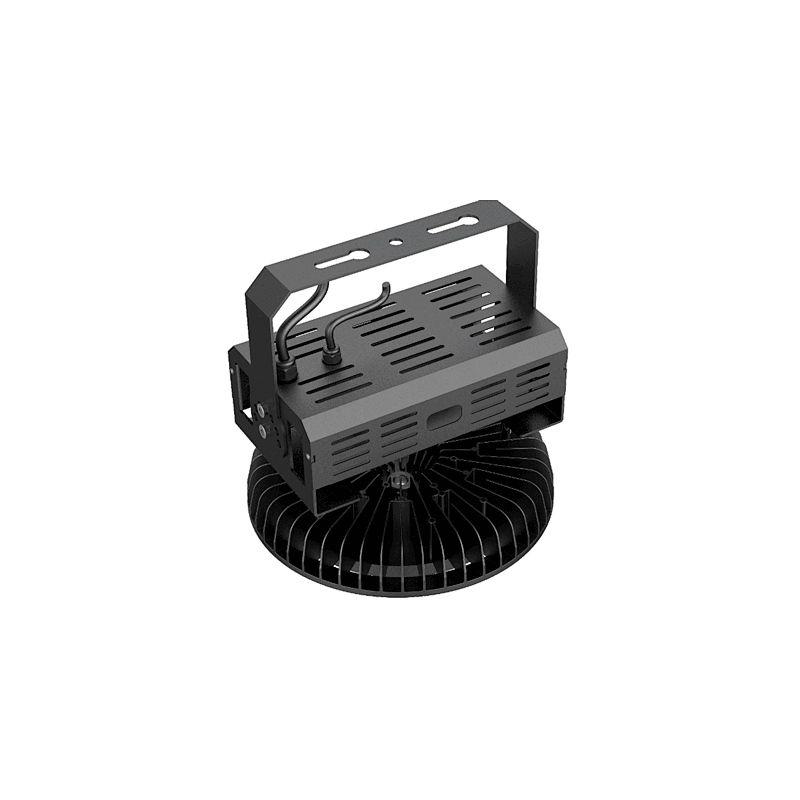

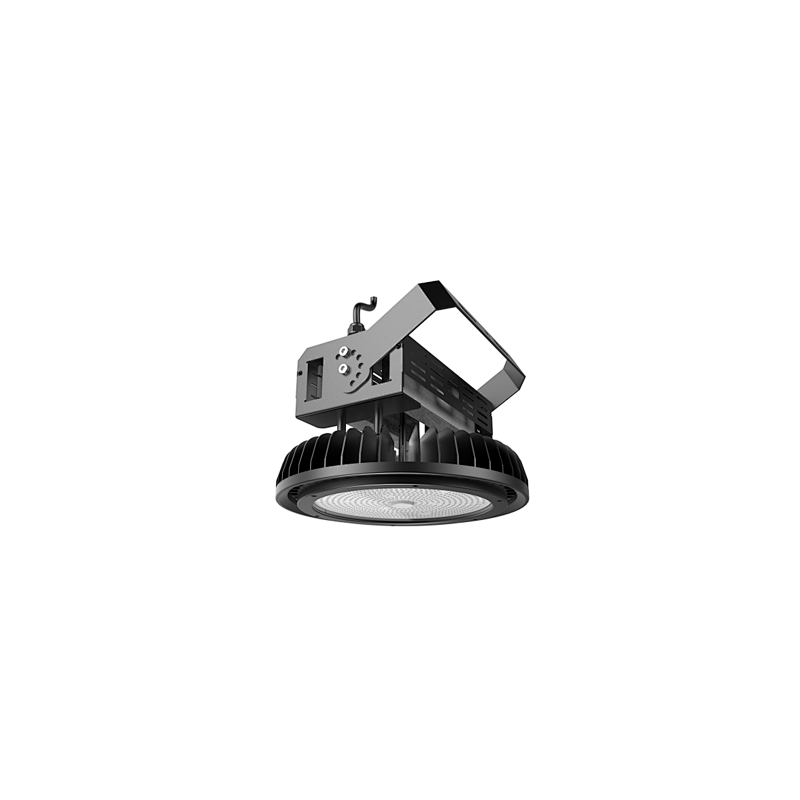

LED UFO High Bay Lights

C-Star LED High Bay Light Introduction:

> Space series high bay is a patent product designed by famous Germany designer.

> The 300W heat sink is made of die-cast aluminum with powder coating.

> The 500W heat sink is made of cold forging pure aluminum with electrophoresis treatment.

> Good heat dissipation, light weight, and good anti-corrosion.

> Lifespan can reach up to 54000Hrs, with lumen output remain 78.24%.

Product Features:

> UGR is lower than 25 when the light is with lens.

> The lifespan of the light is 54000 hours and its maintenance is 78.24%.

> Radiator is made of 1070 pure Aluminum, good heat dissipation. The weight is 40% lighter than die-casting aluminum radiator.

> Voltage is AC100-277V,AC180-528V.

> 400W-500Watts can replace HID of 800-1500watts.

> 1-10V, DALI, microwave sensor, daylight sensor, zigbee, and etc. are optional.

Specifications：

Electrical Data：

Wattage：100W/ 120W /150W/200W/240W/300W/400W/500W

Driver: Meanwell / Inventronics

Input Voltage: AC100-277V/AC200-480V

Power Frequency: 50/60Hz

Power Factor：0.93

Total Harmonic Distortion：<15%

Optical Data:

LED Type：Lumileds

Efficiency: >140lm/W

Luminous Flux: 42000/56000/70000Lm

CCT: 3000K/4000K/5000K/5700K/6500K

CRI: >80Ra

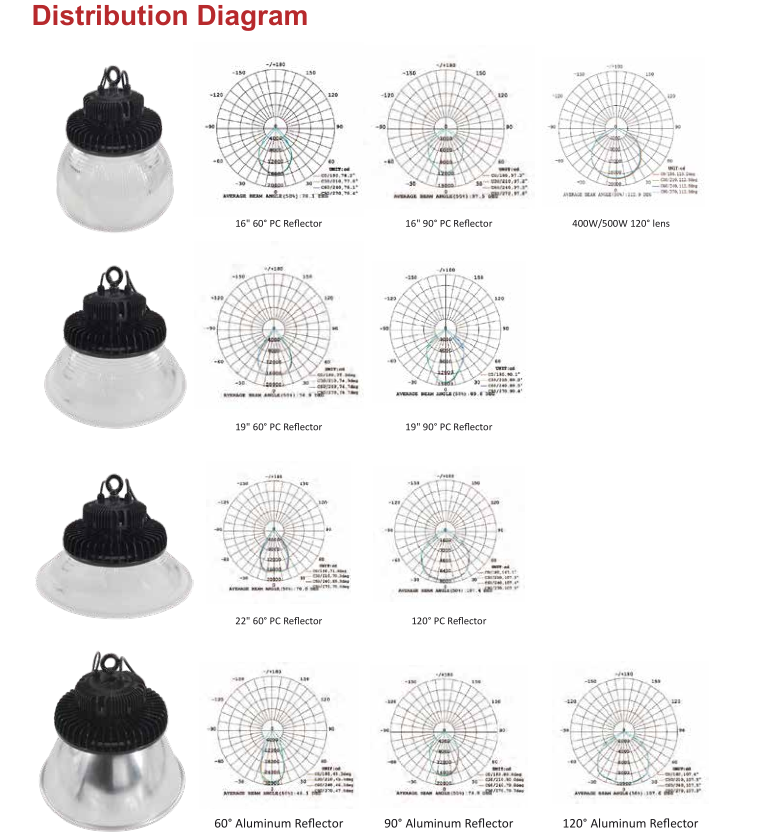

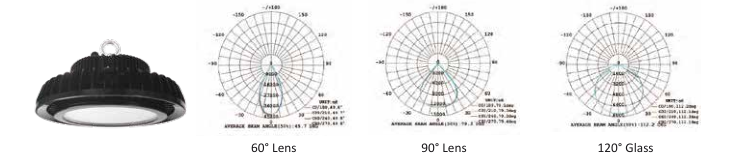

Beam Angle: 90°/120°（300W 60°/90°/120°）

Others:

IP: IP65

Lens Material: PC/Glass

Heat Radiator: die-cast aluminum (300W)&cold forging pure aluminum （500W)

Lifetime: L70,>540000H

Operating Temperature: -30~+50℃

Net weight: 6.8±0.5（100-300W）8.0±0.5（400W/500W）kg

Dimensions: Φ320*H160.2(100-300W) Φ360x211(400W/500W)mm

Cartion size：390*390*220(100-300W) 440X440X280(400W/500W)mm(1PCS)
